| Weight | 1171 g |
|---|---|
| Ampere | 63A, 125A |
| Poles | 3P, 4P, 5P |
| Voltage | 110V, 230V, 400V, 500V |
| Clock position | 4H, 6H, 7H, 9H |
| Protection type | IP67 |
| Hertz | 50-60 Hz |
|---|---|
| Connection technology | Screw terminals |
| Contact | X-CONTACT |

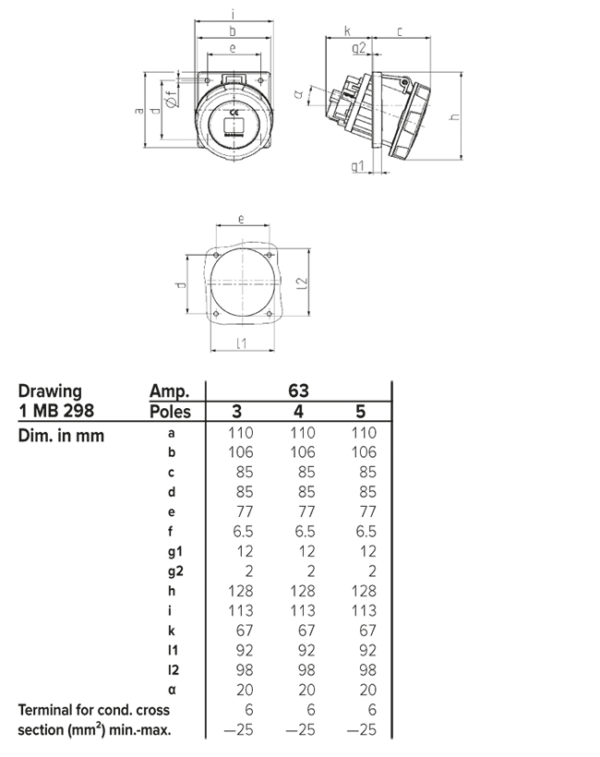

| Flange | 110×106 mm |
| Fixing hole | 85×77 mm |
| Inclination | 20 ° |
| Certifications | EAC CQC |
| Flange | 114×110 mm |
| Fixing hole | 90×90 mm |
| Inclination | 15 ° |
| Certifications | CB Zertifikat VDE EAC CQC |
| Certifications | VDE EAC CQC |
